Steam Turbine Blades
We produce Machined Turbine Blade Forgings with overall length up to 1.500mm (59inch) and initial weight amounting up to 180kg (400lb).
ISO 9001:2008
C*Blade pursues customer satisfaction, for this reason, it has built a quality management system according to ISO 9001:2008 standard.

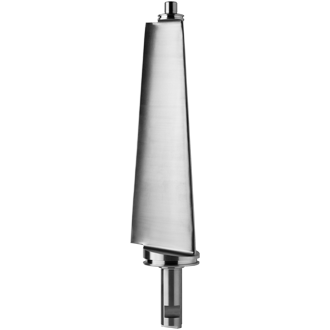

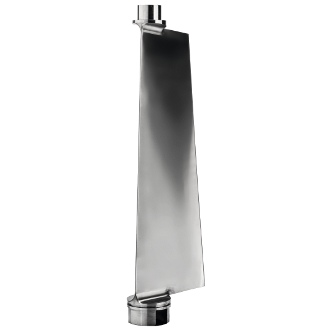

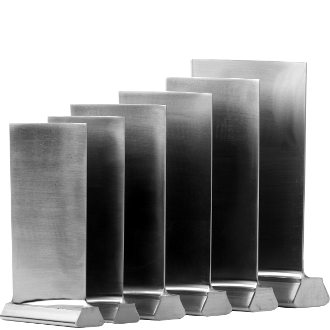

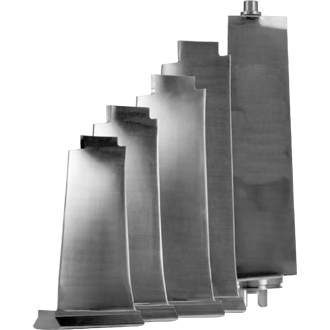

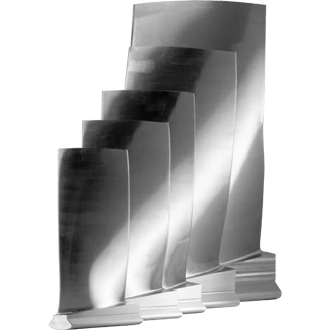

Compressor Blades for Gas Turbines
Our company is specialized in the supply of Compressor Blades for Gas Turbines, from the bigger stages, Forged and Machined, up to the small ones Milled from bar.
Our expertise and equipment allow us to manufacture complex shapes for the big stages of Compressor Blades and Vanes with excellent quality and competitive cost.
The fully integrated production cycle and supply chain enable C*Blade to act as One-Stop Shop for the supply of Ready To Fit Compressor Blades for Gas Turbine.
| Product Range for Gas Turbines | |||
| Turbine Output | 20 MW - 375 MW | ||
| Turbine Section | Compressor (Cold section) | ||
| Blade Types | Blades / Vanes / Inlet Guide Vanes | ||
| Overall Length | 100mm (4") - 1.500mm (59") | ||
| Production Process | Forging + Machining / Milling from bar | ||
Scope of supply
 |
Envelope Forged Blades Forged with 5mm Envelope on all surfaces and with centering holes |
 |
 |
Airfoil Machined Blades Forged with 5mm Envelope on all surfaces and with centering holes, Machined and finished on the airfoil and on the root ramp, not on the root and the shroud (if applicable) |
 |
 |
Complete Machined Blades Forged with 5mm Envelope on all surfaces and with centering holes, Machined and finished on the airfoil, the root and the shroud (if applicable) |
 |
 |
Ready To Fit Blades Forged with 5mm Envelope on all surfaces and with centering holes, Machined and finished on the airfoil, the root and the shroud (if applicable) and where required, coating (ext.), vibration and weight moment balancing |
   |
Materials
EN |
UNS |
AISI |
JIS |
GOST |
References |
|
| Martensitic Stainless Steel | ||||||
| X12CRNIMOV12-3 | 1.4938, 1.4939 | UNI EN 10269 | ||||
| X12CR13 | 1.4006 | S41000 | 410 | SUS410 | 12KH13, 15KH13L | UNI EN 10088-3 |
| X20CR13 | 1.4021 | S42000 | 420 | SUS420J1 | 20KH13 | UNI EN 10088-3 |
| X22CRMOV12-2 | 1.4923 | UNI EN 10269 | ||||
| X4CRNIMO16-5-1 | 1.4418 | UNI EN 10088-3 | ||||
| Precipitation Hardening Stainless Steel | ||||||
| X5CRNICUNB16-4 | 1.4542 | S17400 | 630 | SUS630 | UNI EN 10088-3 | |
| X5CRNIMOCUNB14-5 | 1.4594 | UNI EN 10088-3 | ||||
| X5CRNIMOCUNB15-3 | S45000 | XM-25 | ||||
The table summarizes only the most common Steel types we use and we keep in our warehouse.
For different Steel grades please contact us.
Click here to see the list of qualified steel suppliers.
Reference list
- ALSTOM technology
- ANSALDO technology
- MITSUBISHI technology
- SIEMENS technology
- WESTINGHOUSE technology
